Media-less hyper fine micronizer "Masscomizer X"
MMX has the generator that consists own unique structure, and it processes emulsification, dispersion, and crushing.
Small/light weight/low noise Since MMX is small, light weight, and low noise, it is suitable for placing it anywhere in the factory. MMX corresponds to various shapes of generators A generator part can be connected easily to the high pressure head, and therefore, generators of various types and the latest model can be connected. |

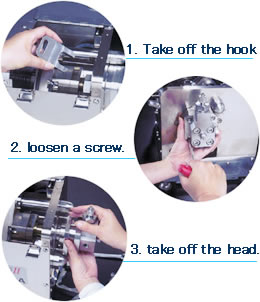

Disassembling and washing are easy The high pressure headset is designed to be disassembled and washed easily. If there is an extra of a set, you can process different raw materials in a short time, and it makes efficient
processing is possible. |
Processing example
| sample | purpose | disperse medium | processing pressure (MPa) |
The processing number of times | Average particle size(nm) |
| Liposome | emulsification | water | 200 100 10 |
3 4 200 |
57 98 140 |
| Fat emulsion | emulsification | water | 150 | 3 | 64 |
| amino acid ceramide | emulsification | water | 150 | 10 | 70 |
BDD |
crushing | water | 150 | 200 | 360 |
| Aloejiru#200 | dispersion | water | 150 50 |
3 1 |
85 93 |
| Aloejiru Alumina | dispersion | water | 50 | 3 | 99 |
| titania ST-01 | dispersion | water | 200 | 10 | 72 |
| titania ST-21 | dispersion | water | 50 | 5 | 74 |
| copper phthalocyanine | dispersion | water | 180 | 50 | Less tan 50 |
| wax | dispersion | water | 200 | 10 | 65 |
| Measuring equipment of particle size: Beckman LS-13320(0.04-2,000ľm) Average particle size is not an arrival limit. | |||||
Guidance about testing
Masuko
Sangyo has an exclusive laboratory for MMX, and we accept test request.
